Main Products
With verified experimental data and technical know how for mixing materials with specific properties, we are capable of providing favorable products addressing any coating technology based on thermal resistance, chemical resistance and plating resistance of the material. Furthermore, we have successfully developed environment friendly solder-resistant inks surpassing all competitors in the industry, winning recognition and customers.
Develop NEW segment / application aggressively
- Leverage over 20years R&D experience, utilize global resource of Taiyo group to provide customization service
- Co-develop with customer, resource sharing
- Cross industry cooperation, explore new market, open innovation
- Open up new segment/application aggressively

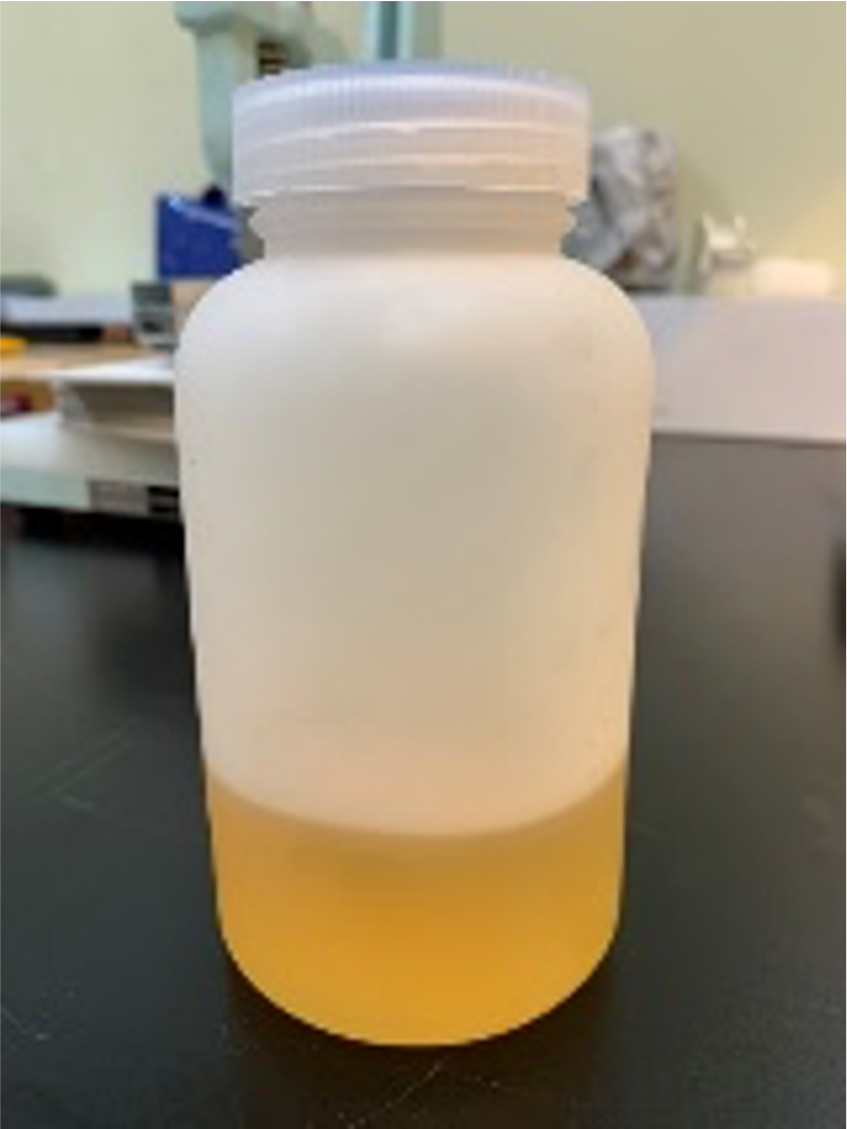

高頻膠(Low DK DF paste)
高頻膠(Low DK DF paste)
WiFi6

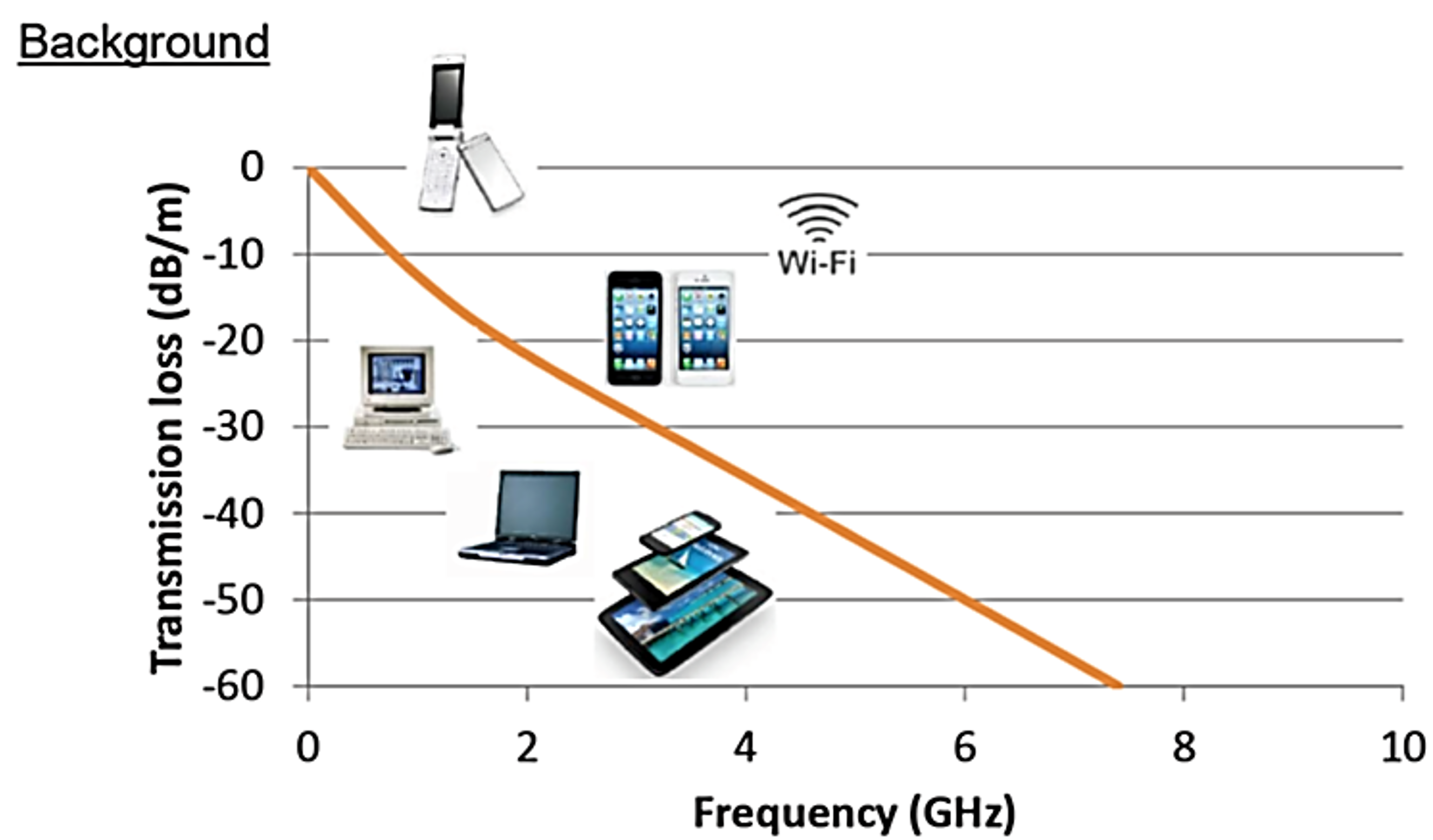

Frequency of electronic devices and EV(Electrical Vehicle) have increasing due to needs of more bandwidth for smartphone and self-driving usage.
The higher and wider frequency use will cause more transmission loss.
高頻, 寬頻趨勢產生更多的耗損(LOSS)
Product | Low DkDf adhesive |
---|---|
Type | Thermal setting |
Printing | Slit coating, spin coating, screen printing |
Post-cure | 180oC/1hr |
Peel Strength (with Cu) (ASTM D-1876) | 1.7 N/mm |
Dk @ 10GHz | 2.8 |
Df @ 10GHz | <0.004 |
Water absorption (ASTM D570) | 0.18% |
- Low DkDf adhesive
- High Peel Strength
- Comply with RoHS & REACH
(No NMP, DMAc …)
If you have any question or requirement, please feel free to contact us

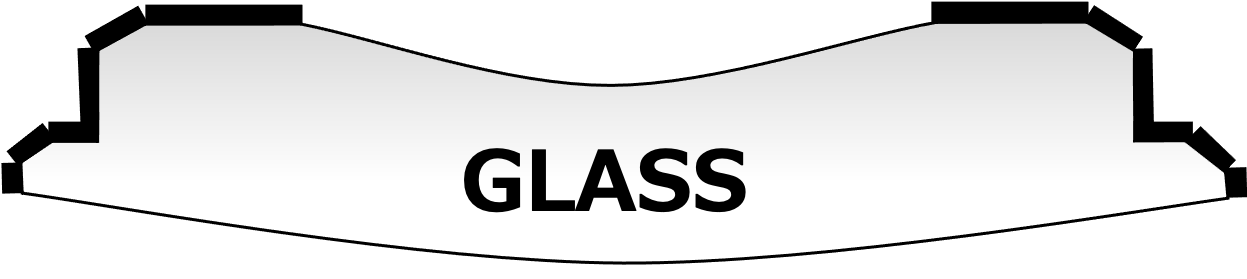

光學用黑色遮光油墨(Optical Lens Shielding)
光學用黑色遮光油墨(Optical Lens Shielding)
RCA-7000 series
- 用途:光學鏡頭遮光

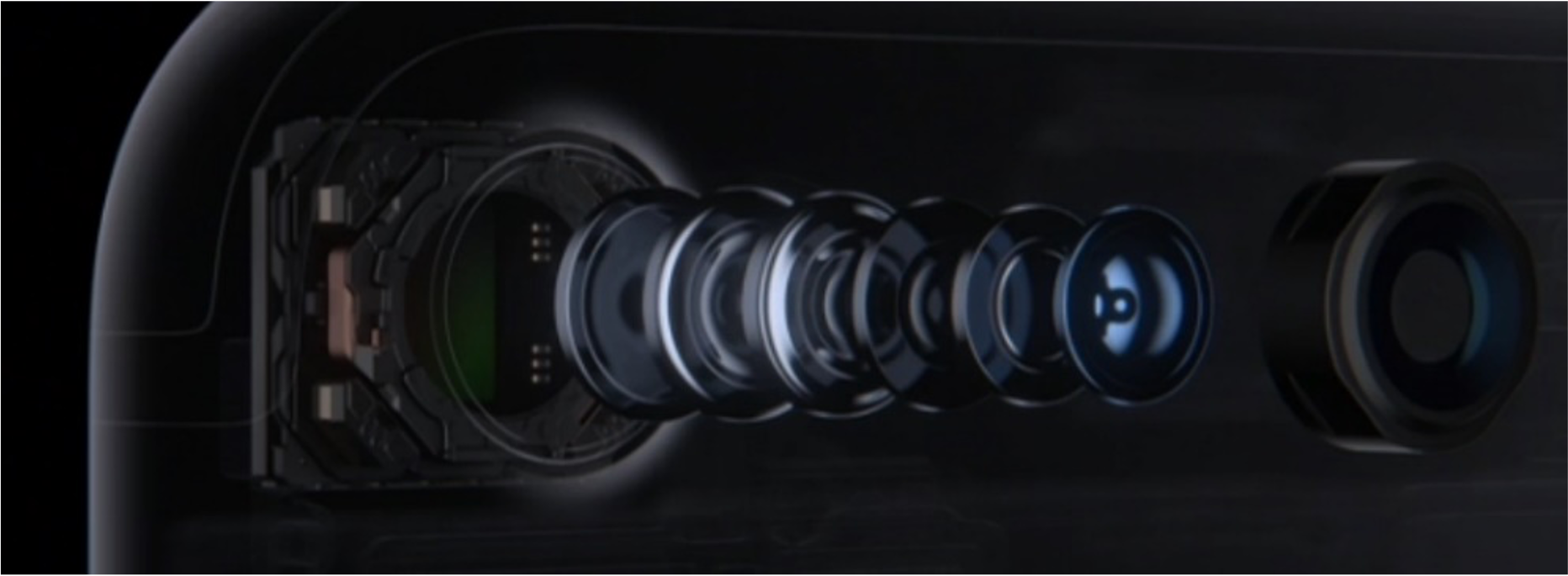

Application :Optical Lens Shielding - UV TYPE、O.D值>3.5
- 亮黑及啞黑皆可達成
Black and Matte black - 對於玻璃及塑膠基材具有良好之密著

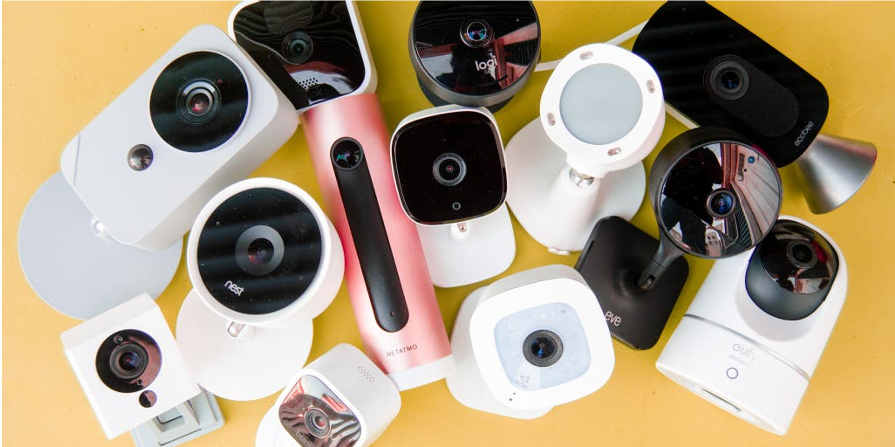

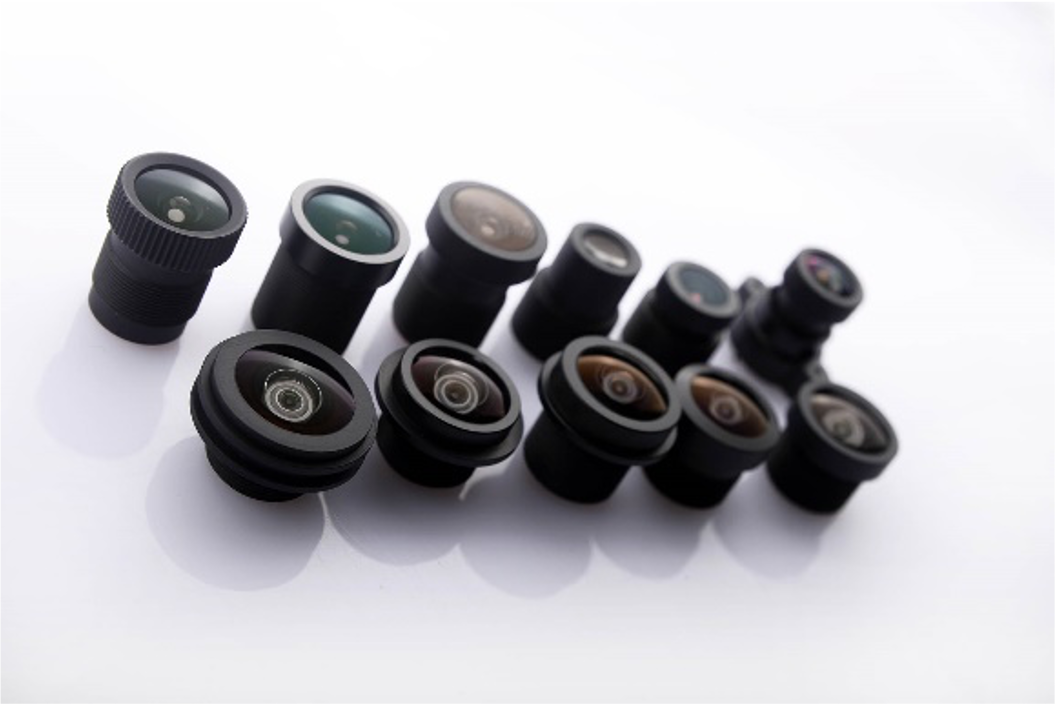

Excellent adhesion on glass and plastic - 潛力應用產業:手機鏡頭、監控鏡頭、車載鏡頭等
Target market :Lens for Smart phone, Security camera, automotive and etc
RCA-7000 OLV-PJ1 | RCA-7000 OLV-G1 | RCA-7000 TTR26063 | RCA-7000 TTR27019 | |
---|---|---|---|---|
硬化方式 | UV type 一液型 | Dual cure type 二液型 | Thermal cure type 二液型 | UV type 一液型 |
O.D | 20um >3.5 | 7um >3.5 | 10um >4 | 6um >4 |
黏度 | 1100-1300 cps | 30-50 cps | 600-700cps | <100cps |
基材 | GLASS COC、PC 等塑膠基材 | GLASS | GLASS COC、PC 等塑膠基材 | COC、PC 等塑膠基材 |
推薦 塗佈方式 | Spray Dispensing | 塗墨 Screen print | Screen print Dispensing | Ink Jet Spray |
備註 | Non solvent type | 高耐候需求 | 厚膜、填孔需求適用 Non solvent type | 低反射 |
If you have any question or requirement, please feel free to contact us
Technical Information

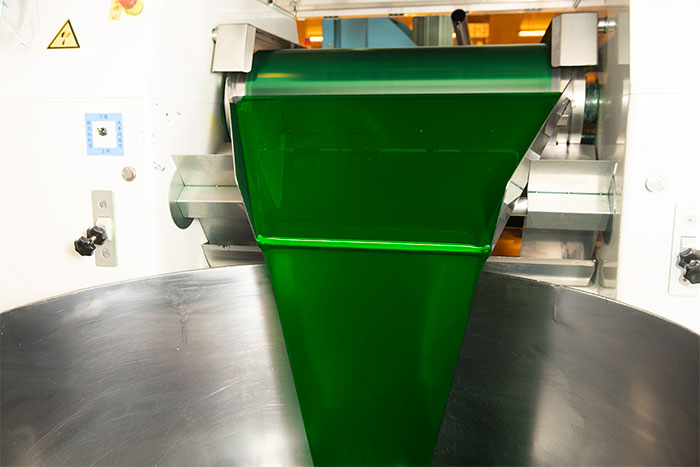

The basic technology and fundamental development of Taiyo Ink Group is a combination of technologies accumulated through years of experience developing solder resist Inks for printed circuit boards together with countless improvements. These represent the core of the enterprise.
Together with the swift evolution of the electronic industry, printed circuit boards advanced endlessly. In order to get a first hand grasp of the trend, we pioneered research and gathered relevant data of numerous studies about chemical reactions and thermal cure and photoimageable cure technologies.
Based on these technologies, we further explored dispersive technology of organic and inorganic materials, endowing ourselves with the know-how for manufacturing printed circuit boards. These have been a lifeline for the technology and development of the Taiyo Ink Group.
Since TAIYO INK MFG. CO., LTD. set up overseas production subsidiaries, TAIWAN TAIYO INK CO., LTD. has engaged in the R&D of multiple products and become specialized in fundamental technologies including the design and formulation of resin dispersion techniques, filtration/processing know-how, etc.
Such consistent endeavors to pursue technological improvements enabled us taking a leading position in the PCB industry, which rapidly change and require highly precision and reliability. We have successively achieved our goals for highly functional solder resist, securing our leading position in the Solder Resist Ink industry.
Looking ahead, we, Taiwan Taiyo, shall further endeavor to upgrade our technical abilities. Based on the policy of “contribute to the information society via a prompt product development mechanism that meets customer needs”, we will consistently research and develop solder resist Inks for supply to Taiwan and the rest of the world. We also need to further upgrade ourselves to actively face challenges from versatile domains, to research and develop quality products, and to constantly engage with inexhaustible challenges.
